X-Ray Bragg Crystal Imager

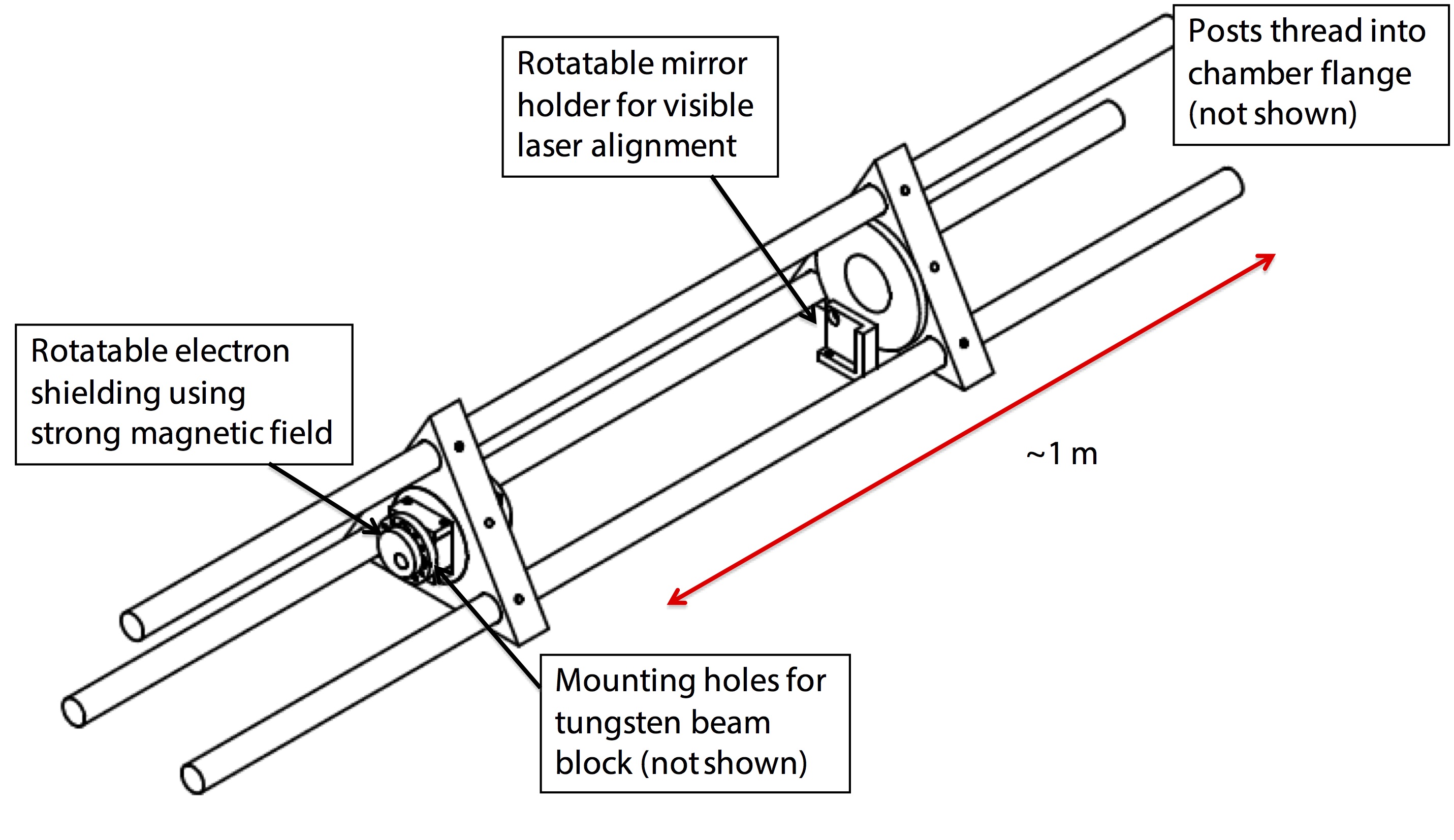

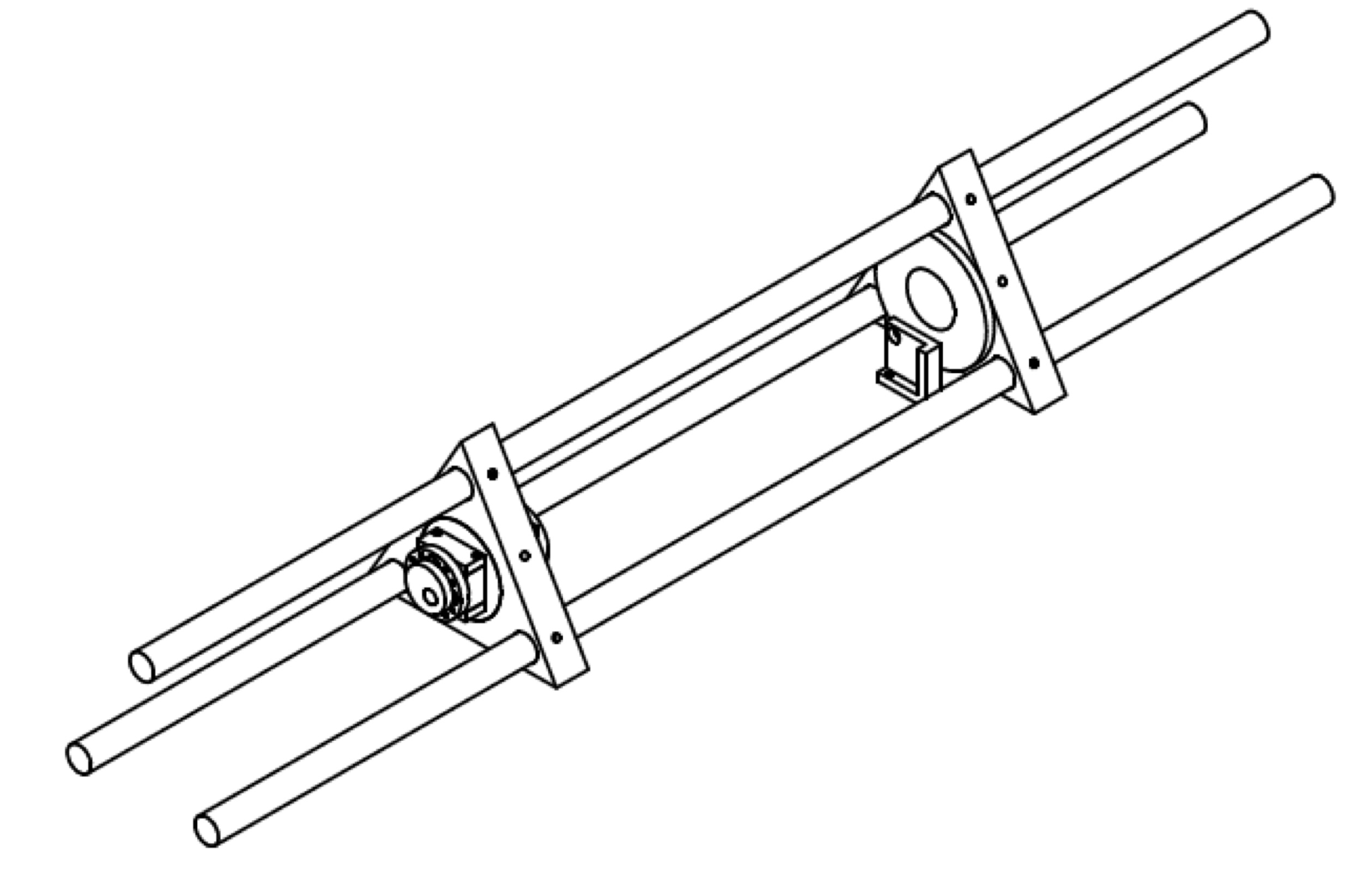

One of an array of X-Ray instruments needed for experiments on the Titan Laser at the Lawrence Livermore National Laboratory (LLNL), the Bragg Crystal imager was designed with Dr. Robert Fedosejevs and Mianzhen Mo to image the Cu K-alpha X-Ray emission. It was installed and successfully operational on my last experimental campaign before completing my graduate studies.

Software used: Autodesk Inventor

Work done in 2010-2011.
