Rack-Mounted Gas Analyzer

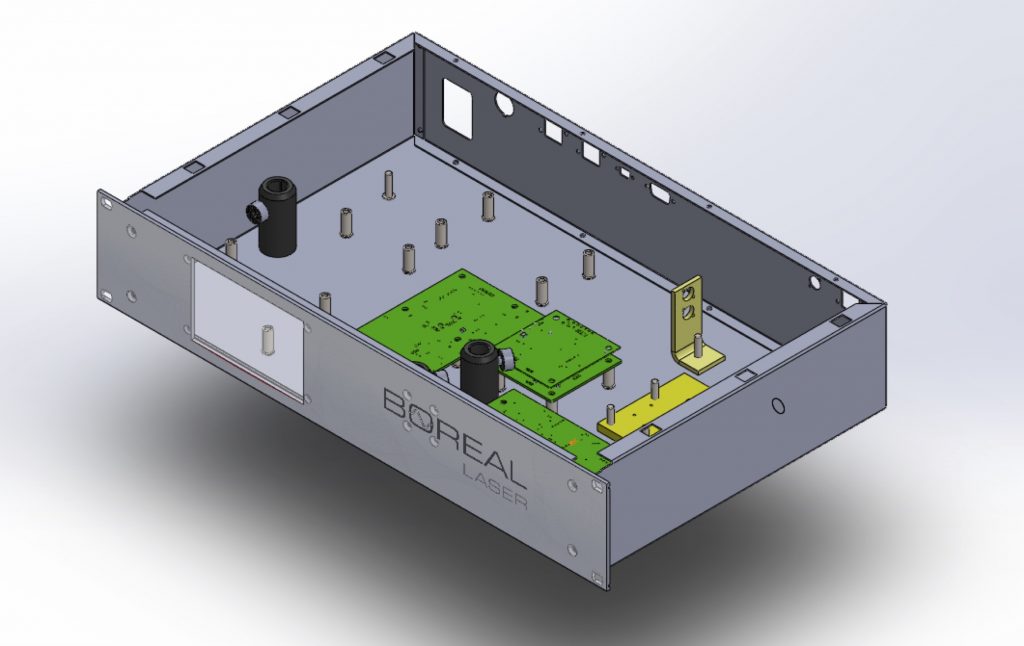

Boreal Laser’s new digital gas analyzer needed to be configured for a 19″ rack-mounted enclosure. I did so, completing the layout of PEM studs, baseplate, and front and back panel cutouts of an off-the-shelf enclosure. I also allowed for the possible changes necessary for an oxygen gas detector design which I had done in previous projects.

Software used: Solidworks.

Work done in 2014.
